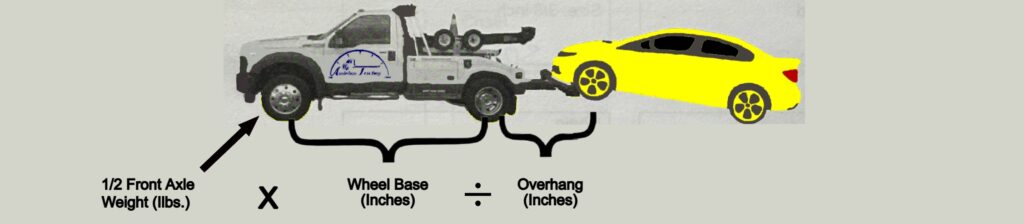

Single cab wrecker
| ½ Tow truck front axle weight | × | Tow truck wheelbase | ÷ | Overhang with lift out (extended) | = | Safe tow capacity |
| ½ Tow truck front axle weight | × | Tow truck wheelbase | ÷ | Overhang with lift in (retracted) | = | Safe tow capacity |

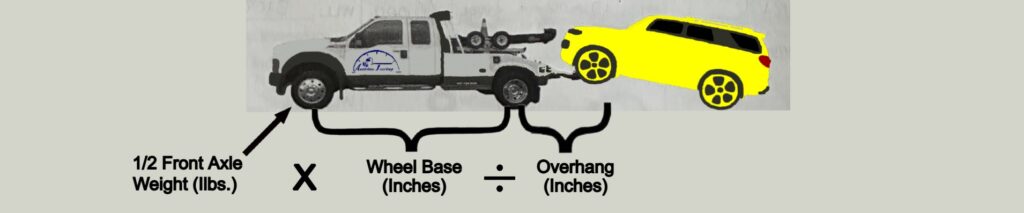

Extended cab wrecker
½ Tow truck front axle weight | × | Tow truck wheelbase | ÷ | Overhang with lift out (extended) | = | Safe tow capacity |
|
|
|
½ Tow truck front axle weight | × | Tow truck wheelbase | ÷ | Overhang with lift in (retracted) | = | Safe tow capacity |
|
|
|

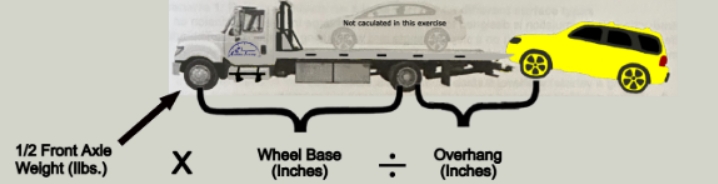

Flatbed using wheel lift
½ flatbed front axle weight | × | Flatbed wheelbase) | ÷ | Overhang with lift out (extended) | = | Safe tow capacity |
|
|
|
½ flatbed front axle weight | × | Flatbed wheelbase) | ÷ | Overhang with lift in (retracted) | = | Safe tow capacity |
|
|
|
|

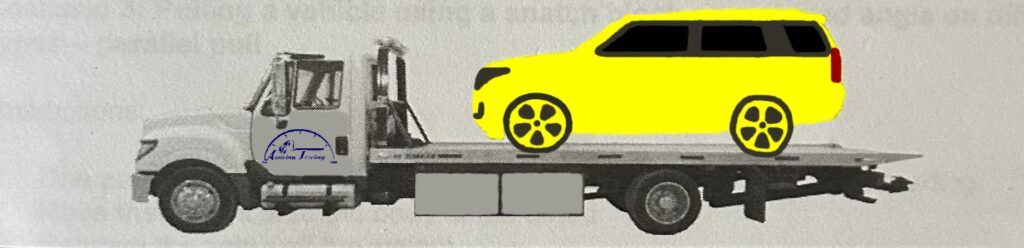

Flatbed carrier deck calculation
Rear Axle Rating | – | Weight on the rear axle unloaded | = | Safe carrying capacity |
|
|
